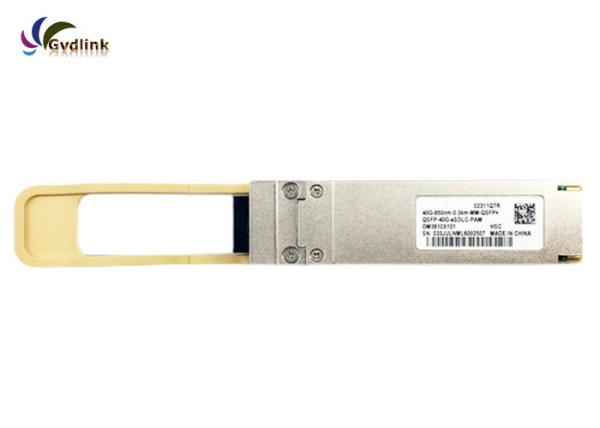

HW QSFP-40G-eSDLC-PAM 02311QTR Compatible QSFP+ 850nm 300m LC optical Transceiver modules
Description
HWcompatible QSFP-40G-eSDLC-PAM is QSFP (Quad Small Form-factor Pluggable) Transceiver, operating over Multi-Mode Fiber (MMF), Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 4.5 dB (SMF) / 2.5 dB (MMF), with in most cases is enough to reach about 150m, 2km distance.However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Huawei compatible QSFP-40G-eSDLC-PAM QSFP (Quad Small Form-factor Pluggable) operates in Standard 0°-70°C temperature range and has Double LC interface. QSFP Universal support 39.81 – 44.8 Gbps data rate and such applications as 40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps). Huawei QSFP-40G-eSDLC-PAM compatible QSFP Universal optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home aggregation and backbone, Mobile operator core and back-haul 40G applications, Data Center networking site interconnections and other optical links.
Features
| Compatible Part number |
QSFP-40G-eSDLC-PAM 02311QTR |
| Transceiver form factor |
QSFP+ 40G |
| Center wavelength (nm) |
850 |
| Connector type |
LC |
| Applicable cable and maximum transmission distance |
Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 300 m |
| Modal bandwidth |
Multimode fiber (OM3): 2000 MHz*km
Multimode fiber (OM4): 4700 MHz*km |
| Transmit power (dBm) |
-2 to +2.4 |
| Maximum receiver sensitivity (dBm) |
-8.0 |
| Overload power (dBm) |
-2.4 |
| Extinction ratio (dB) |
≥ 3 |
| Operating temperature |
0°C to 70°C |
Applications
- Fully compatible with almost all HW devices
- High-speed interconnection between switches, routers, servers, etc.
- Suitable for large data centers, campus, metropolitan area network, and other network environments
Protocols and Safety Standards
- Class 1 laser safety compliant
- Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
- Compliant with OTN OTU3, 40G Ethernet, Infiniband, SATA/SAS3, QSFP+ MSA
Our HW QSFP 40G Product series
| Our Model |
HW Model |
Specification |
| GVD-QSFP-40G-SR4 |
QSFP-40G-eSR4 |
40G QSFP for MMF 850nm 300m or 400m |
| GVD-QSFP-40G-SR4 |
QSFP-40G-iSR4 |
40G QSFP for MMF 850nm 300m or 400m |
| GVD-QSFP-40G-LR4 |
QSFP-40G-LR4 |
40G QSFP for SMF 1310 10km |
| GVD-QSFP-40G-ER4 |
QSFP-40G-ER4 |
40G QSFP for SMF 1310 40km |
| GVD-QSFP-40G-SR-BD |
QSFP-40G-SR-BD |
40GBASE-SR-BiDi QSFP+ Transceiver Module |
QSFP-40G-ER4
QSFP-40G-eSM4
QSFP-40G-eSR4
QSFP-40G-iSM4
QSFP-40G-iSR4
QSFP-40G-LR4
QSFP-40G-LR4-Lite
QSFP-40G-LX4
QSFP-40G-SR-BD (Single-Fiber-Bidirectional Module)
QSFP-40G-eSDLC-PAM
QSFP-40G-SDLC-PAM
QSFP-40G-eSDLC-PAM-G2
QSFP-40G-SDLC-PAM-G2
