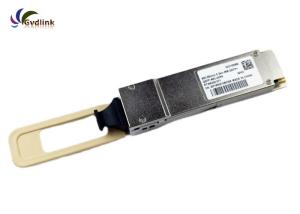

MTP MPO 850nm 400m MMF Transceiver Module HW QSFP-40G-ESR4 QSFP+

Product Categories
Shenzhen Gaveid communication Technology Co.,Ltd
Contact Now

MTP MPO 850nm 400m MMF Transceiver Module HW QSFP-40G-ESR4 QSFP+

  • 1
  • 2

Brand Name : Gvdlink

Model Number : GVD-QSFP-40G-SR4

Certification : CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C,Paypal

Supply Ability : 3500pcs per week

Delivery Time : 1-5 working days

Packaging Details : Standard neutral or brand packing

Product name : optical transceiver

Type : QSFP

Data Rate : 40Gb/s

Wavelength : 850nm

Distance : OM3 for 300m and OM4 for 400m

Connector : MTP/MPO

Operating tempreature : -20~70 C -40~85 C

Warranty : 3 years

Contact Now

HW QSFP-40G-eSR4 Compatible 40GBASE-ESR4 QSFP+ 850nm 400m DOM MTP/MPO MMF Optical Transceiver Module

Description

the Gvdlink QSFP-40G-eSR4 It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 10.3125 Gbps up to 300 m using OM3 fiber or 400 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector.

Features

  • 4 channels full-duplex transceiver modules

  • Transmission data rate up to 10.5Gbps per channel

  • 4 channels 850nm VCSEL array

  • 4 channels PIN photo detector array

  • Low power consumption <1.2W

  • Hot Pluggable QSFP form factor

  • Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
  • Single MPO connector receptacle
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C

  • 3.3V power supply voltage

  • RoHS 6 compliant (lead free)

Applications

  • 40G Ethernet and OTU3

  • Datacom/Telecom switch & router connections

  • Data Aggregation and Backplane Applications

  • Proprietary Protocol and Density Applications

  • Infiniband transmission at 4ch SDR , DDR and QDR

Our HW QSFP 40G Product series

Our Model HW Model Specification
GVD-QSFP-40G-SR4 QSFP-40G-eSR4 40G QSFP for MMF 850nm 300m or 400m
GVD-QSFP-40G-SR4 QSFP-40G-iSR4 40G QSFP for MMF 850nm 300m or 400m
GVD-QSFP-40G-LR4 QSFP-40G-LR4 40G QSFP for SMF 1310 10km
GVD-QSFP-40G-ER4 QSFP-40G-ER4 40G QSFP for SMF 1310 40km
GVD-QSFP-40G-SR-BD QSFP-40G-SR-BD 40GBASE-SR-BiDi QSFP+ Transceiver Module

QSFP-40G-ER4
QSFP-40G-eSM4
QSFP-40G-eSR4
QSFP-40G-iSM4
QSFP-40G-iSR4
QSFP-40G-LR4
QSFP-40G-LR4-Lite
QSFP-40G-LX4
QSFP-40G-SR-BD (Single-Fiber-Bidirectional Module)
QSFP-40G-eSDLC-PAM
QSFP-40G-SDLC-PAM
QSFP-40G-eSDLC-PAM-G2
QSFP-40G-SDLC-PAM-G2

Our product line show

MTP MPO 850nm 400m MMF Transceiver Module HW QSFP-40G-ESR4 QSFP+
